Introduction
A Payment Method represents a valid method of charging the End User. This could either be an active card, an active Betalingsservice, or an active MobilePay Subscription.
Endpoints
GET /paymentMethod/{guid}
Get a single Payment Method.
Response
|
HTTP |
Description |
|---|---|
|
200 |
OK |
|
404 |
Payment Method was not found |
HTTP 200 Example
{
"paymentMethodGuid": "a863d62e-d53b-4651-9b7b-xxxxxxxxxxxx",
"paymentSessionGuid": "",
"contactGuid": "",
"state": "",
"paymentMethodType": "",
"paymentMethodAccountingCode": "",
"paymentGatewayProvider": "",
"paymentGatewayGuid": "",
"paymentGatewaySubscriptionToken": "",
"createdTs": "",
"cancelledTs": "",
"cancelCode": "",
"cancelDescription": "",
"expireTs": "",
"errorCode": "",
"errorDescription": "",
"metaData": {
"card": {
"type": "Dankort",
"expiresTs": "2020-01",
"cardNumber": "457150XXXXXX7478",
"acquirer": "Nets/Teller"
},
"bs": {
"mandate": "956964XXX",
"customerNumber": "605XXX"
},
"mps": {
"externalId": "1568581537XXX"
},
"sms": {
"msisdn": "4512345678"
}
}
}
GET /paymentMethod/{guid}/subscriptions
Get a list of Subscriptions for a single Payment Method.
Response
|
HTTP |
Description |
|---|---|
|
200 |
OK |
|
404 |
Payment Method was not found |
HTTP 200 Example
[
{
"subscriptionGuid": "a863d62e-d53b-4651-9b7b-xxxxxxxxxxxx",
"...": "..."
},
{
"subscriptionGuid": "a863d62e-d53b-4651-9b7b-xxxxxxxxxxxx",
"...": "..."
}
]
POST /paymentMethod/{guid}/Cancel
Cancel a Payment Method. Please note this is not allowed if Pending Payments exists.
If the Payment Method is applied to a Subscription of an Agreement marked as Payment Required, the Subscription's state will remain as is. Otherwise the Subscription will change state to: "Inactive".
Request
The following must be provided as the request body:
{
"cancelCode": "...",
"cancelDescription": "..."
}Response
|
HTTP |
Description |
|---|---|
|
202 |
Accepted |
|
400 |
Bad Request |
|
404 |
Payment Method not found |
A callback is sent when the cancel operation either fails or succeeds.
Properties
|
Name |
Type |
Description |
|---|---|---|
|
paymentMethodGuid |
STRING |
Unique GUID |
|
paymentSessionGuid |
STRING |
GUID of Payment Session used internally |
|
contactGuid |
STRING |
GUID of Contact |
|
state |
STRING |
Please see list of Payment Method States below |
|
paymentMethodType |
STRING |
Please see list of Payment Method Types below |
|
paymentMethodAccountingCode |
STRING |
Accounting Code defined by Payment Method. Please see list below |
|
paymentGatewayProvider |
STRING |
Please see list of Payment Gateway Providers below |
|
paymentGatewayGuid |
STRING |
GUID of Payment Gateway used internally |
|
paymentGatewaySubscriptionReferenceId |
STRING |
A token from the chosen Payment Gateway used for recurring payments |
|
metaData |
JSON Object |
Contains metadata such as card type, masked card number etc. |
|
createdTs |
DATE |
Timestamp of Payment Method creation |
|
cancelledTs |
DATE |
Timestamp of cancellation |
|
cancelCode |
INTEGER |
Please see list of Cancel Codes below |
|
cancelDescription |
STRING |
User friendly description of cancellation |
|
expireTs |
DATE |
Timestamp of expiration |
|
errorCode |
INTEGER |
Please see list of Payment Method Error Codes below |
|
errorDescription |
STRING |
User friendly description of the provided error |
|
gatewayErrorCode |
INTEGER |
Error code from Payment Gateway. Please see: Error and Cancel Codes |
|
gatewayErrorDescription |
STRING |
Error description from Payment Gateway. Please see: Error and Cancel Codes |
|
rawErrorString |
STRING |
Uninterpreted error response provided by Payment Gateway |
Payment Gateway Providers
|
Payment Gateway Provider |
Description |
|---|---|
|
ePay |
Delivers payment methods: Dankort, Visa, MasterCard, MobilePay Online etc. |
|
DIBS |
Delivers payment methods: Dankort, Visa, MasterCard, MobilePay Online etc. |
|
QuickPay |
Delivers payment methods: Dankort, Visa, MasterCard, MobilePay Online etc. |
|
MobilePay |
MobilePay Subscriptions |
|
Betalingsservice |
Betalingsservice (Basis and Total Solution) |
|
LinkMobility |
Delivers SMS payment method |
|
SMSCPH |
Delivers SMS payment method |
|
Test |
Used for testing purposes |
|
Log |
Only used in Sandbox for testing purposes |
Payment Method Types
|
Payment Method |
Description |
|---|---|
|
Card |
Payments via Dankort, Visa, MasterCard etc. |
|
MobilePayOnline |
Single payments via MobilePay Online |
|
MobilePaySubscriptions |
OneOff and Recurring payments via MobilePay Subscriptions |
|
Betalingsservice |
Recurring payments via Betalingsservice, inclusive Payment Slips (Indbetalingskort) |
|
SMS |
Payments via SMS keywords |
|
Test |
Payments as Test |
|
Log |
Only used in Sandbox for testing purposes |
Payment Method Accounting Codes (examples)
|
Payment Method |
Description |
|---|---|
|
BetalingsserviceMandate |
Betalingsservice by bank |
|
BetalingsservicePaymentSlip |
Betalingsservice by payment slip (giro / FI-card) |
|
Dankort |
Dankort |
|
Forbrugsforeningen |
Forbrugsforeningen |
|
Maestro (foreign) |
Maestro from countries other than Denmark |
|
Mastercard |
Mastercard |
|
Mastercard (foreign) |
Mastercard from countries other than Denmark |
|
MobilePay |
MobilePay |
|
Visa |
Visa |
|
Visa Electron |
Visa Electron |
|
Visa/Dankort |
Visa or Dankort |
|
Visa/Electron (foreign) |
Visa/Electron from countries other than Denmark |
Payment Method States
Following is a list of Payment Method states with a state diagram below:
|
State |
Description |
|---|---|
|
New |
A Payment Method that has been created, but not yet sent to the payment gateway. |
|
Pending |
The request has been sent to chosen Payment Gateway |
|
SessionExpired |
Used for MobilePay Subscriptions that was not accepted in time. |
|
Active |
The Payment Method is active |
|
Expired |
The Payment Method is expired. Primarily used for cards. |
|
Rejected |
The Payment Method was rejected by the End User prior to activation. |
|
Cancelled |
The Payment Method was cancelled by the End User or Merchant. |
|
Failed |
The Payment Method reaches failed, if none of the above applies. |
|
Inactive |
The Payment Method is inactive |

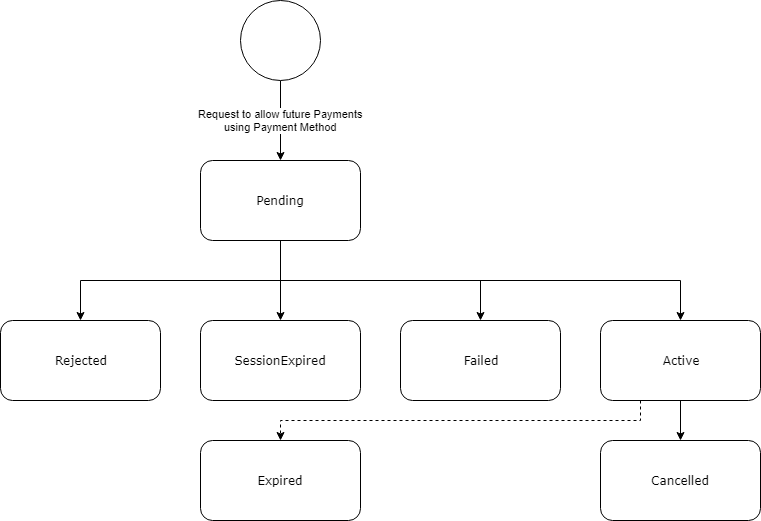

Payment Method State Diagram
Payment Method Error Codes and Descriptions
For further examples and ties to other entities, please see: Error and Cancel Codes
|
Error Code |
Description |
Examples |
State |
|---|---|---|---|
|
200001 |
Payment Method signup failed |
Invalid data provided for either National ID, Business Number, Sort Code or Account Number with Betalingsservice. |
Failed |
|
200002 |
Payment Method was rejected during sign up |
Involves Debtor rejection of a request i.e. in a mobile app. |
Rejected |
|
200003 |
Payment Method signup expired |
Debtor did not approve request in mobile app in time. |
SessionExpired |
|
200004 |
Payment Method has expired |
Involves expiration of Card or requirement of new SCA. |
Expired |
|
200005 |
Payment Method has failed |
Errors with the Gateway without options to retry or reactive. |
Failed |
Payment Method Cancel Codes and Descriptions
For further examples and ties to other entities, please see: Error and Cancel Codes
|
Cancel Code |
Description |
State |
|---|---|---|
|
200101 |
Cancelled by Debtor |
Cancelled |
|
200102 |
Cancelled by Creditor |
Cancelled |
|
200103 |
Cancelled by System |
Cancelled |
